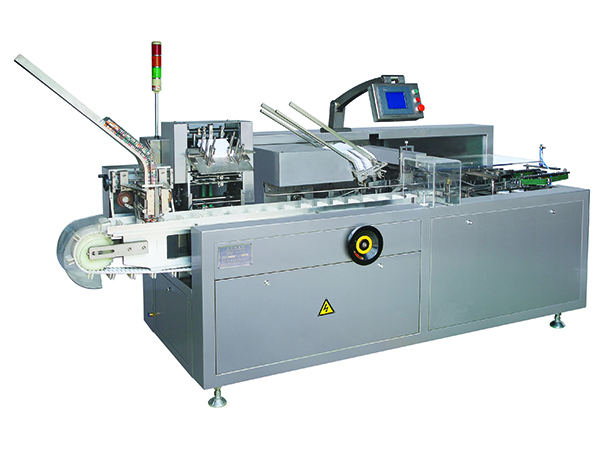

Fully Automatic Cartoning Machine

The automatic cartoning machine is used to insert blisters, bottles, vials, tube, ointment, sachets, injections, cosmetic, condoms, ampoules, plow-wrapped products, soap components, automotive parts, hardware, frozen food, milk powder bag, cereal bag, pharmaceutical products and just about any other product into a range of different carton types. It utilizes an advanced technology that has combined pneumatic, photoelectric and mechanical technologies, and completes operation using a series of photoelectric controllers to ensure machine stability and packing quality. It is capable of 1 to 4 folds leaflet automatic folding, carton vacuum extraction and opening, placing products and leaflet inside, printing batch numbers, and sealing or hot melt coating. It could be used individually, or linked to a filing machine, blister packing machine, shrink machine, 3D packaging machine and other equipment in order to form a production chain.

Main Technical Parameters
Encasing speed 30-100boxes/min
Box Quality requirement 250-300g/m2
Dimension range (L×W×H) (60-230)mm×(15-60)mm×(20-170)mm
Leaflet Quality requirement 50-70g/m2
Unfolded leaflet specification (L×W) (80-250)mm×(90-170)mm
Fold range 【1-4】Fold
Compressed air Working pressure ≥0.6Mpa
Air consumption 120-160L/min
Power 380V/50Hz
Motor power 0.75kw
Machine dimension(L×W×H) 3300mm×1100mm×1500mm
Machine weight 1400kg

1. Internationally known brands are used for the electric components (such as the PLC touch screen and frequency converters)
2. Easy human to machine operation interface.
3. Automatic display for any problems, speed and counting of finished products.
4. The mchine will automatically stop if cartons or products are in the wrong position, or there are no products or cartons within the machine
5. No products not suction leaflet, no leaflet not suction carton.
6. An automatic detection and rejection device is used to sort through non-qualified blister products and leaflets.
7. Automatic overload protection
8. Stable performance, operation is easy.
